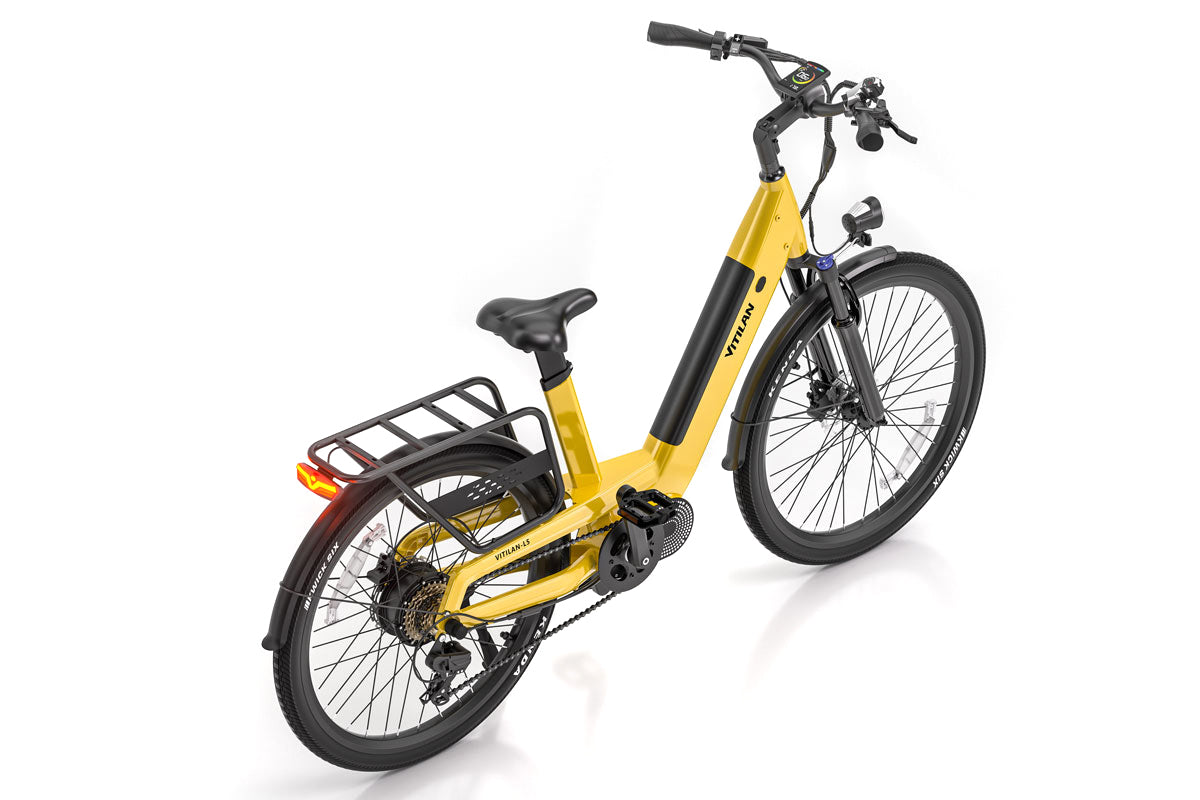

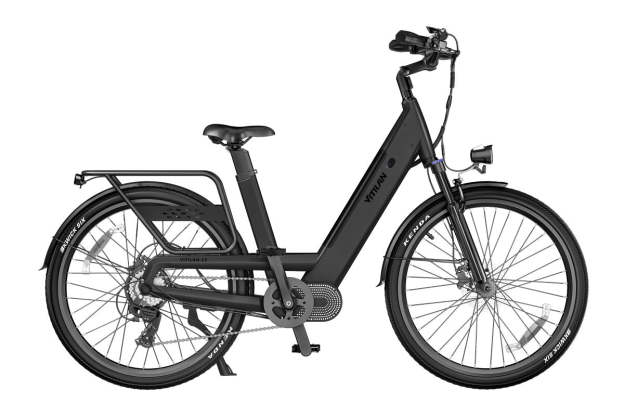

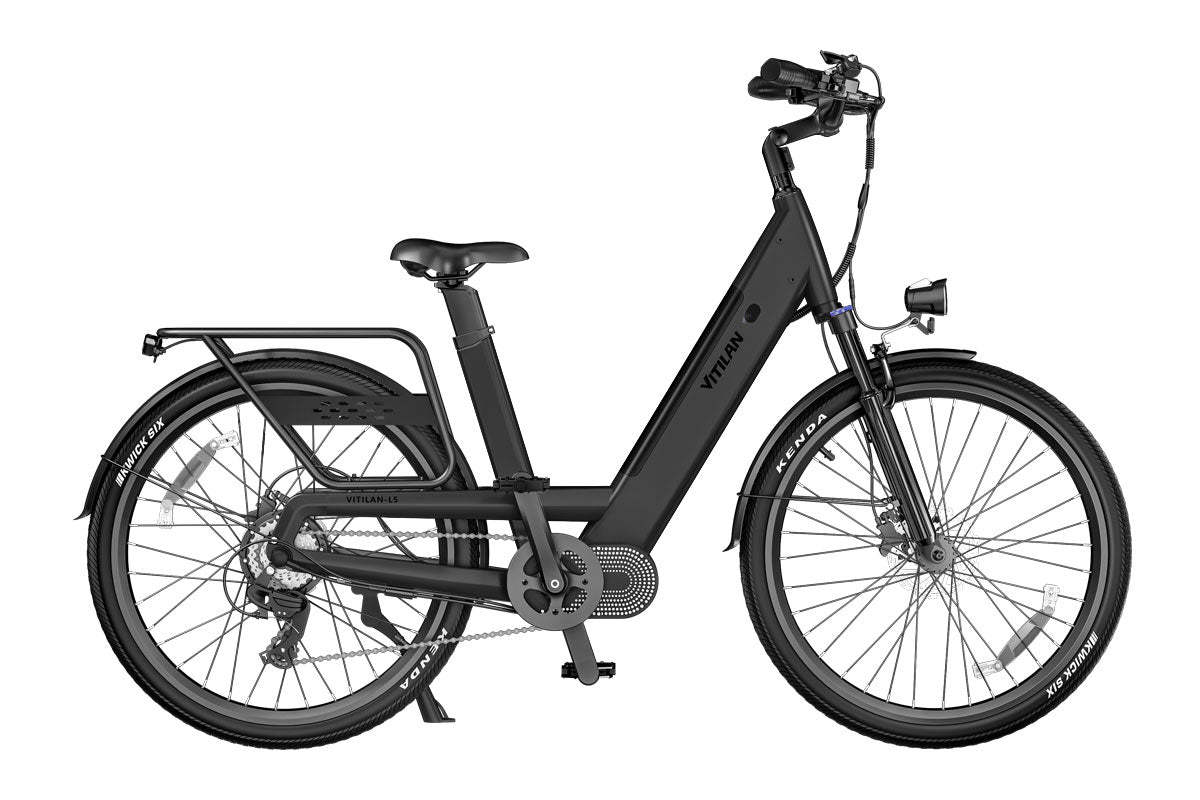

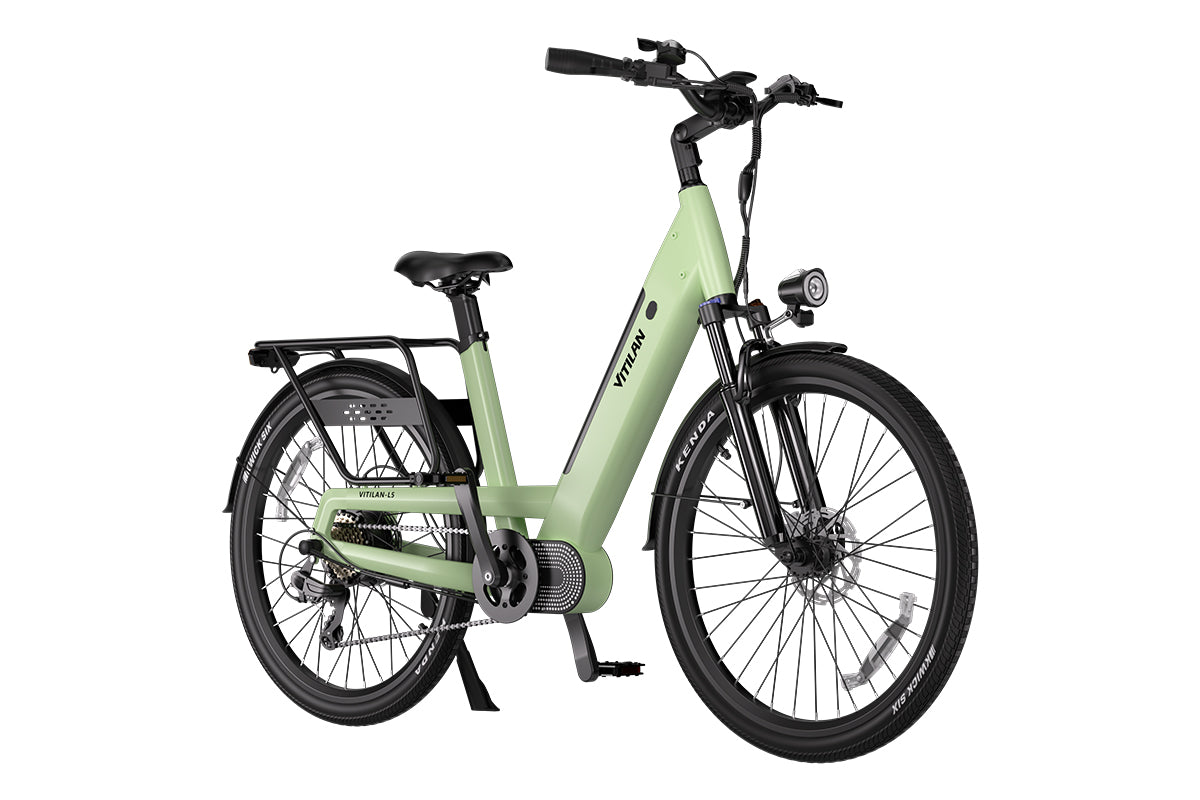

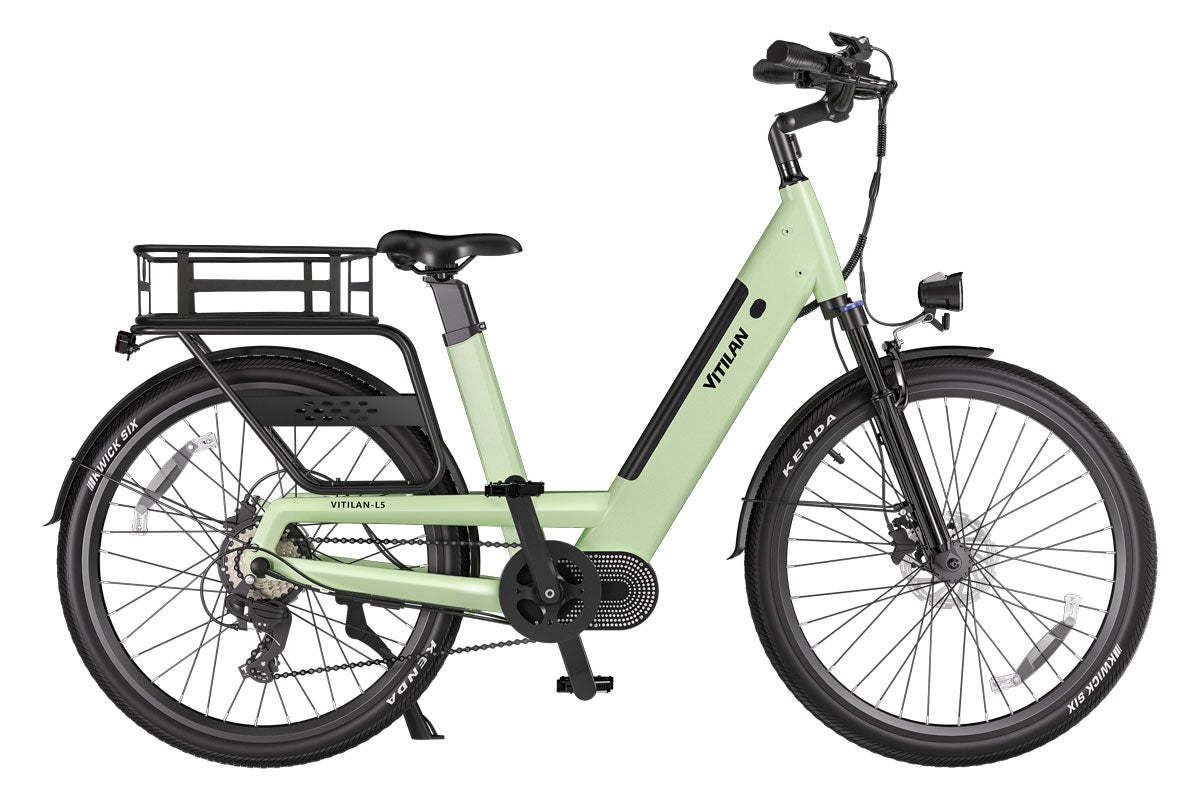

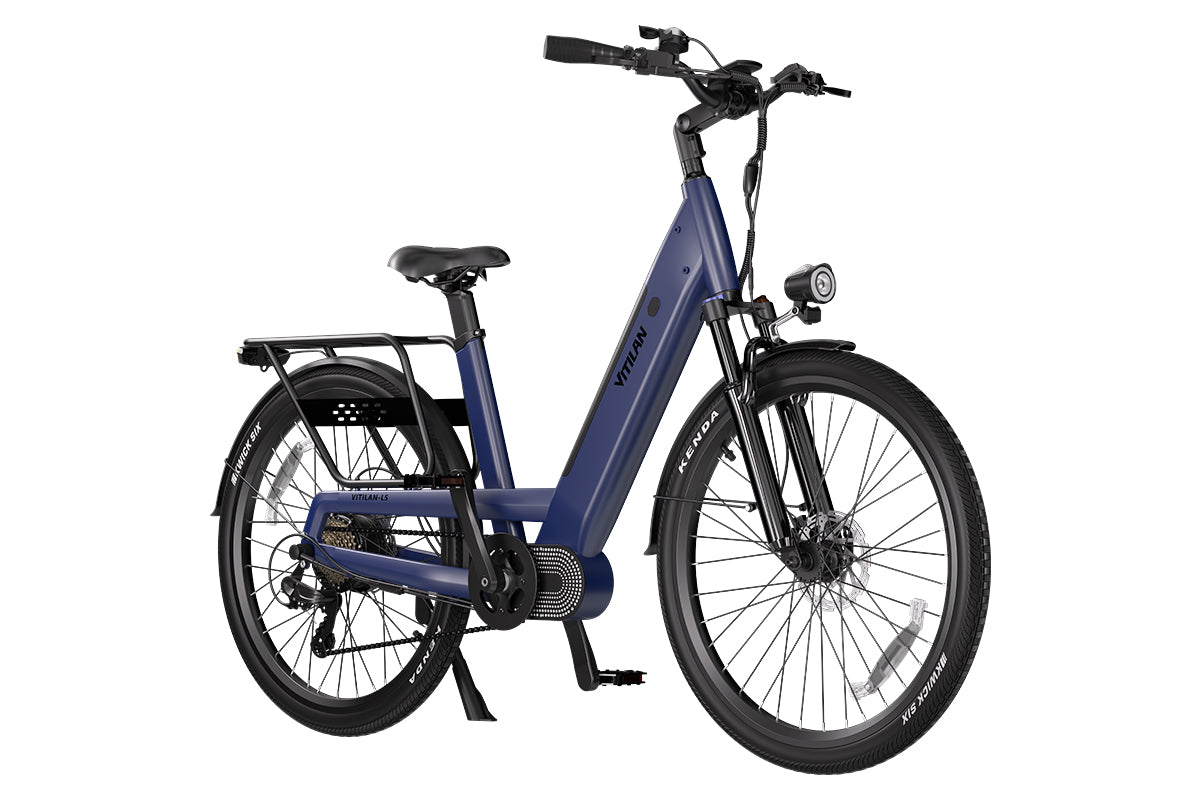

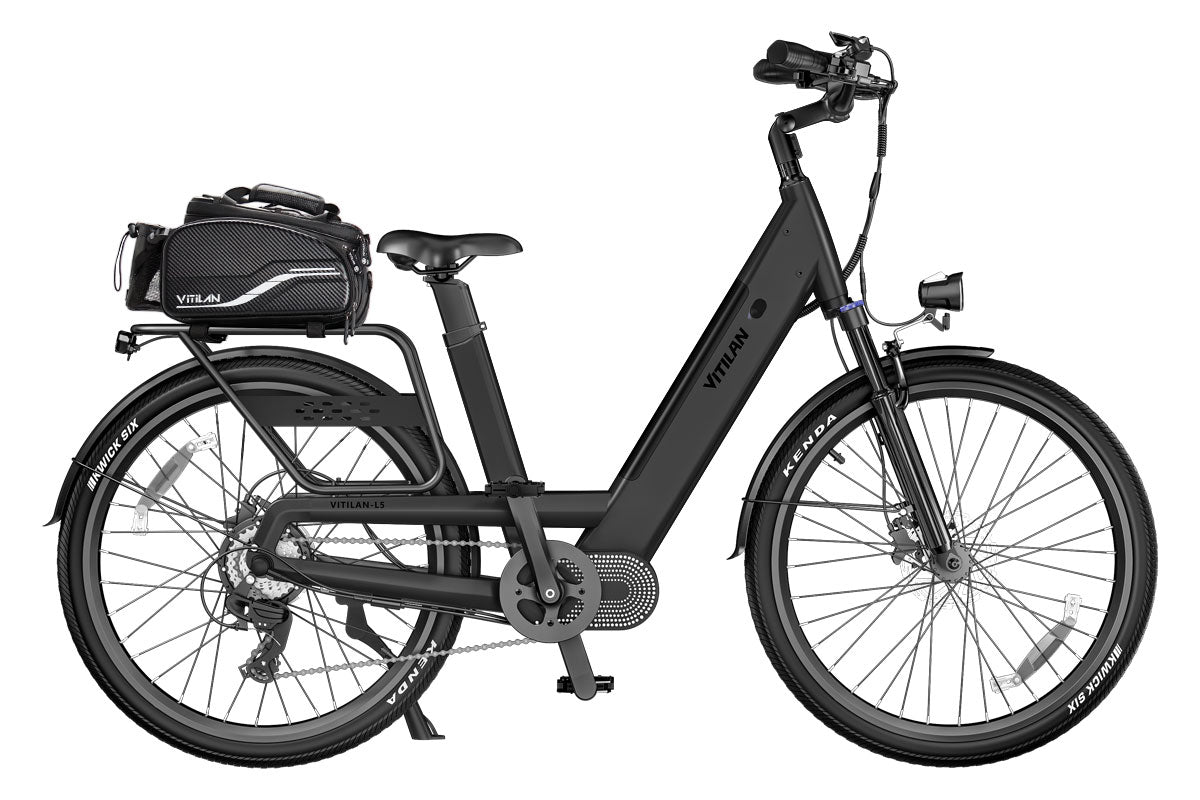

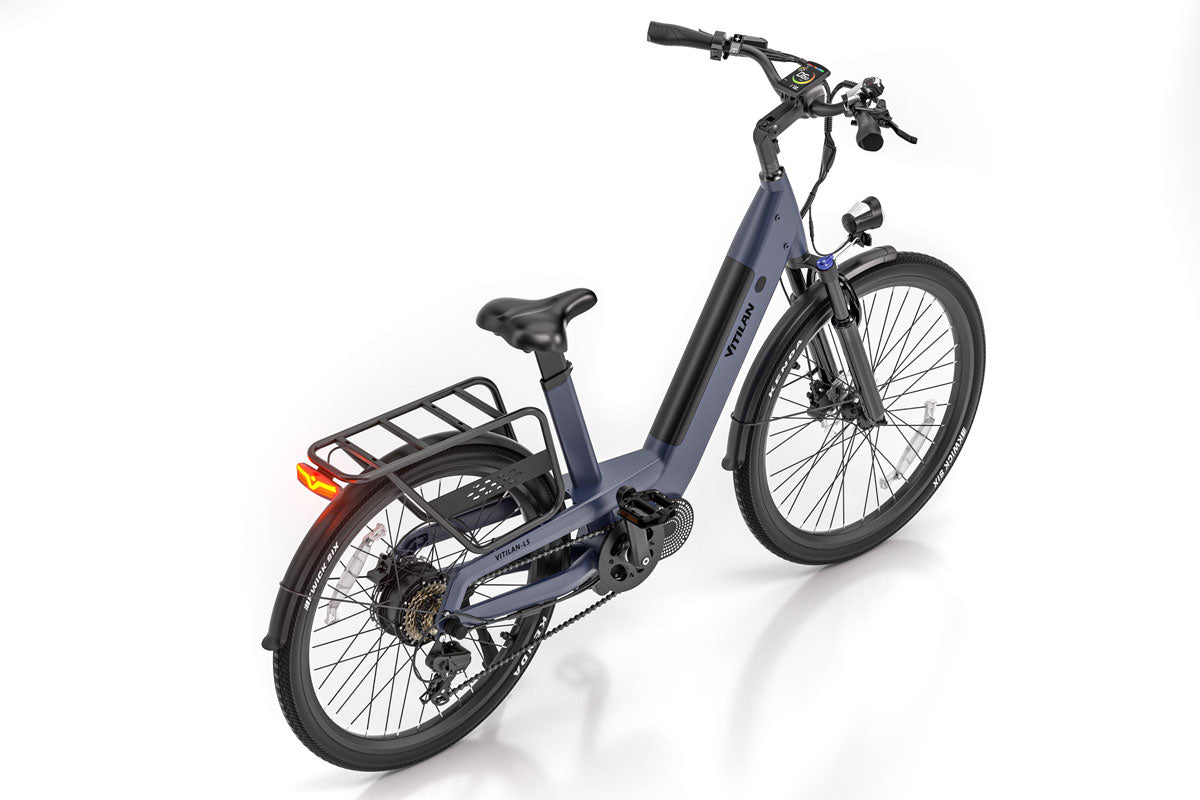

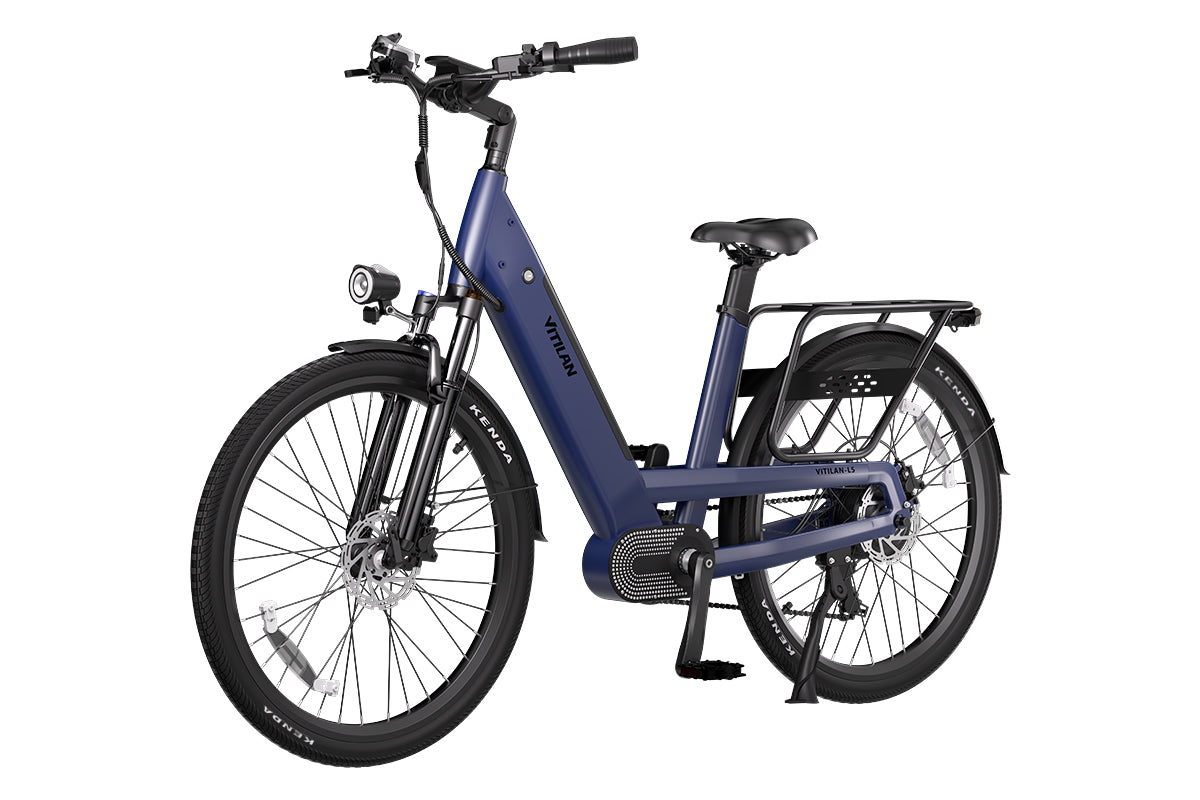

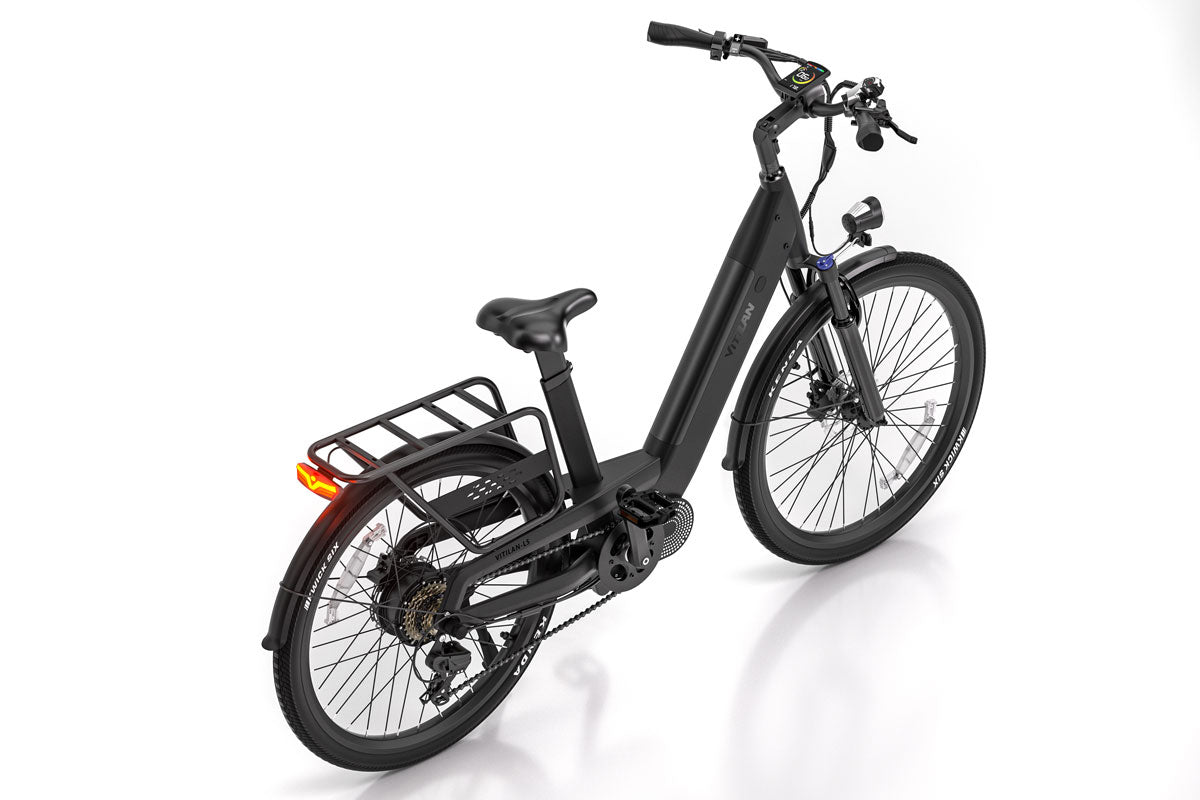

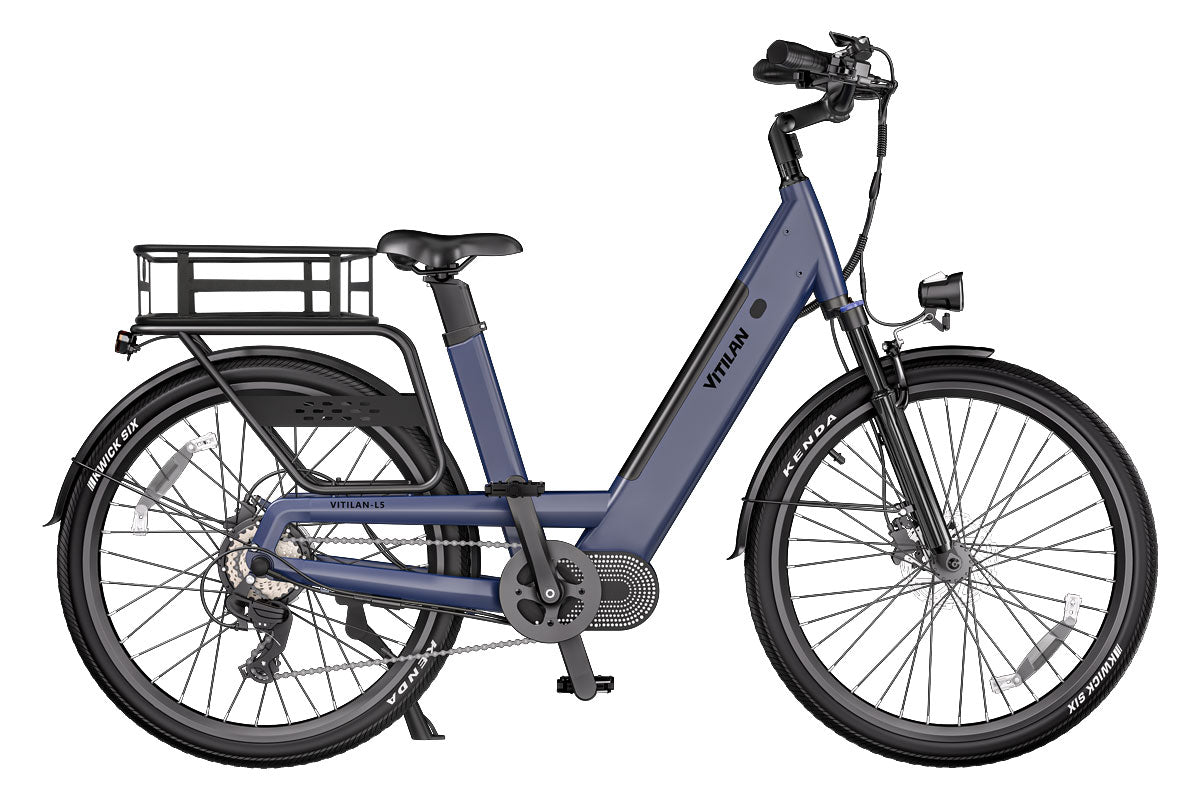

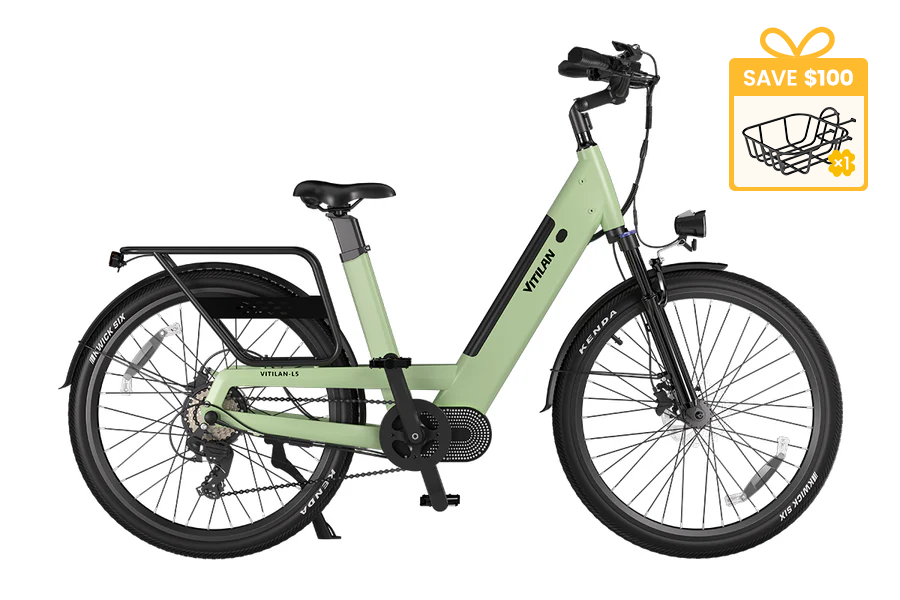

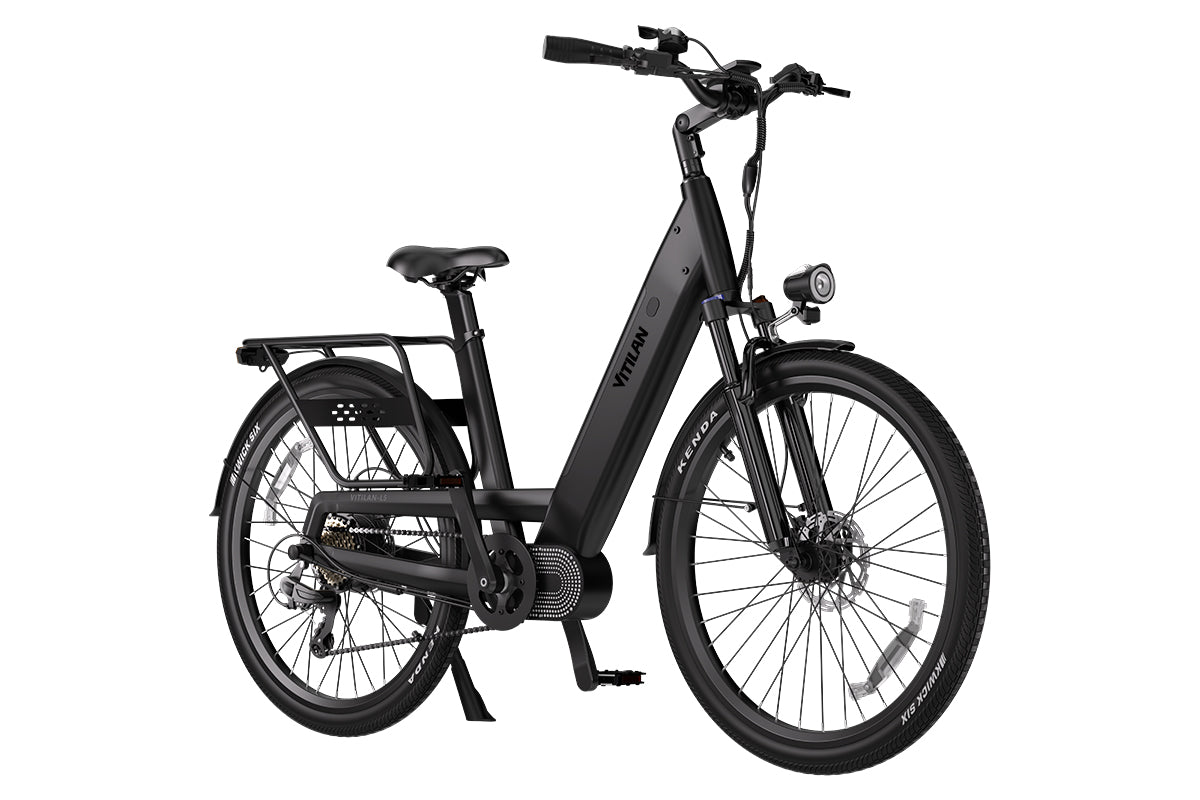

Vitilan L5 Urban Commuter Electric Bike
$989.00 USD
$1,279.00 USD
23%OFF
Quantity
48V 15Ah
Lithium-Ion Battery
500W/960W
Rated/Peak Motor
40-65 Miles
Range
25 MPH
Speed
0 Time Lag
Torque Sensor
Step-through
Minimalist Design
L5 Urban Commuter Electric Bike Review
What do they say?

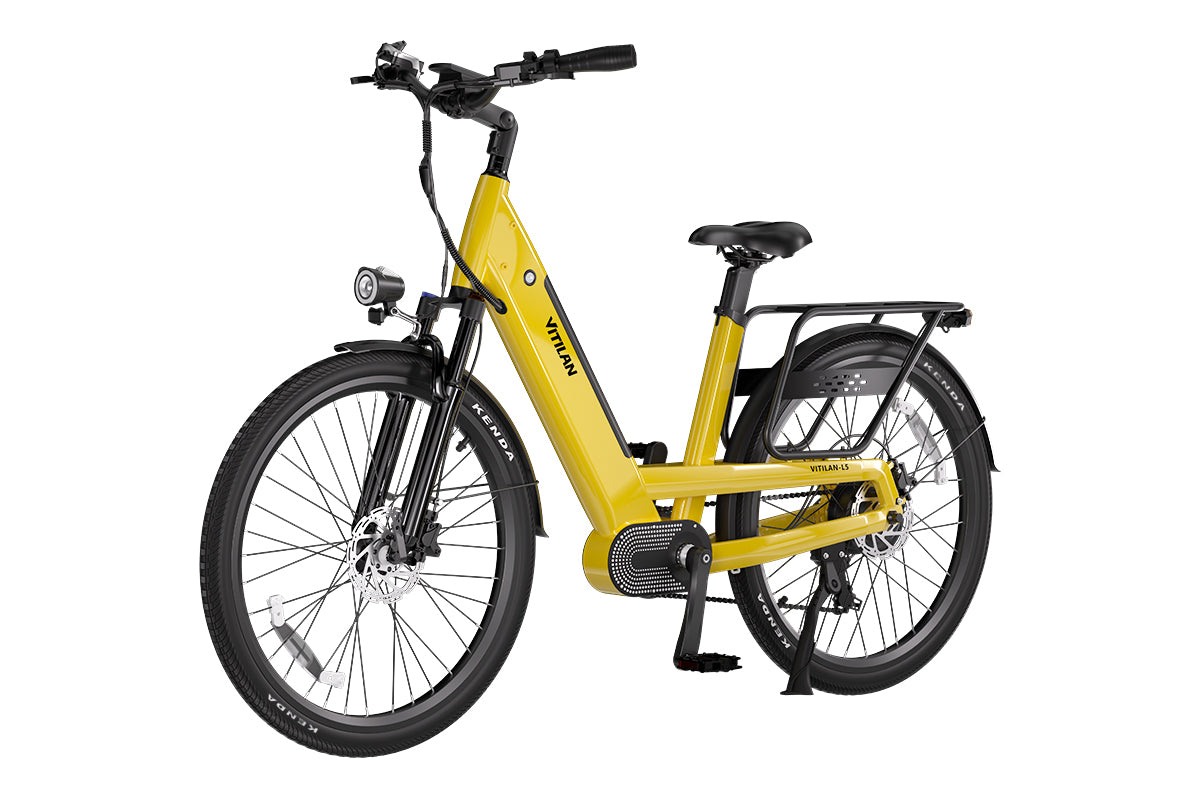

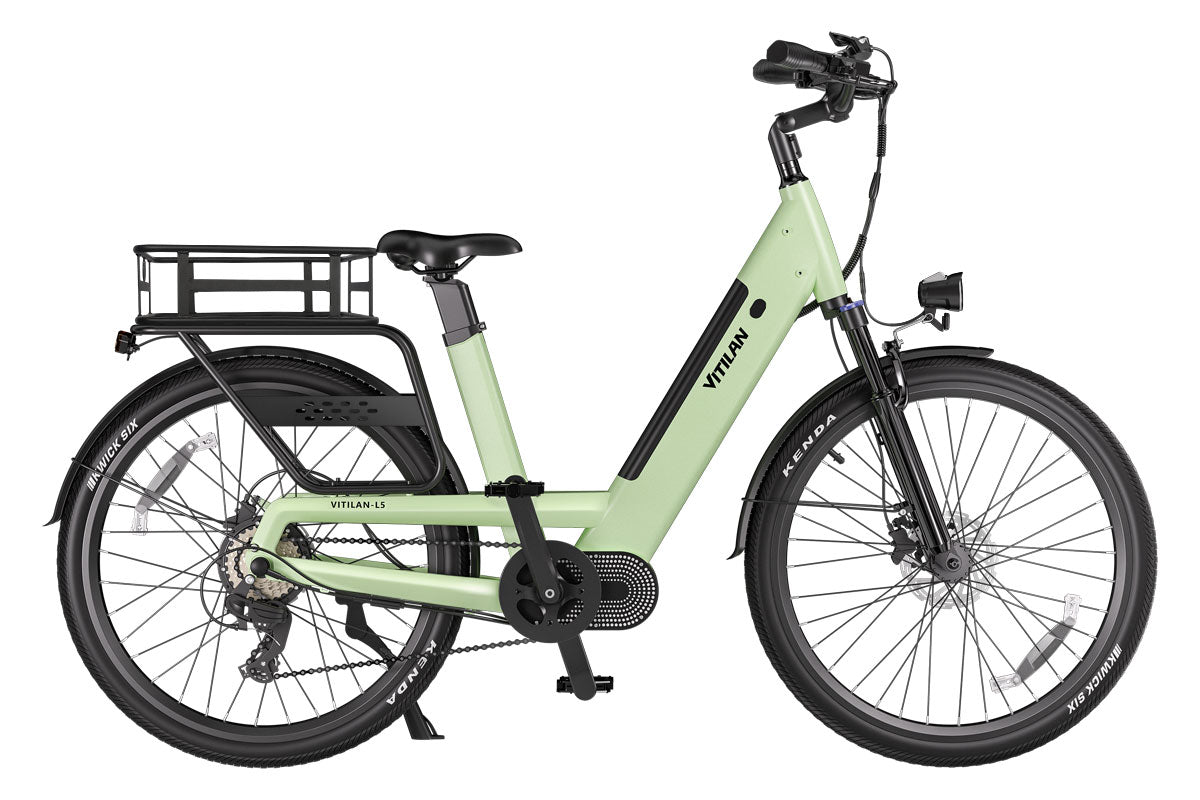

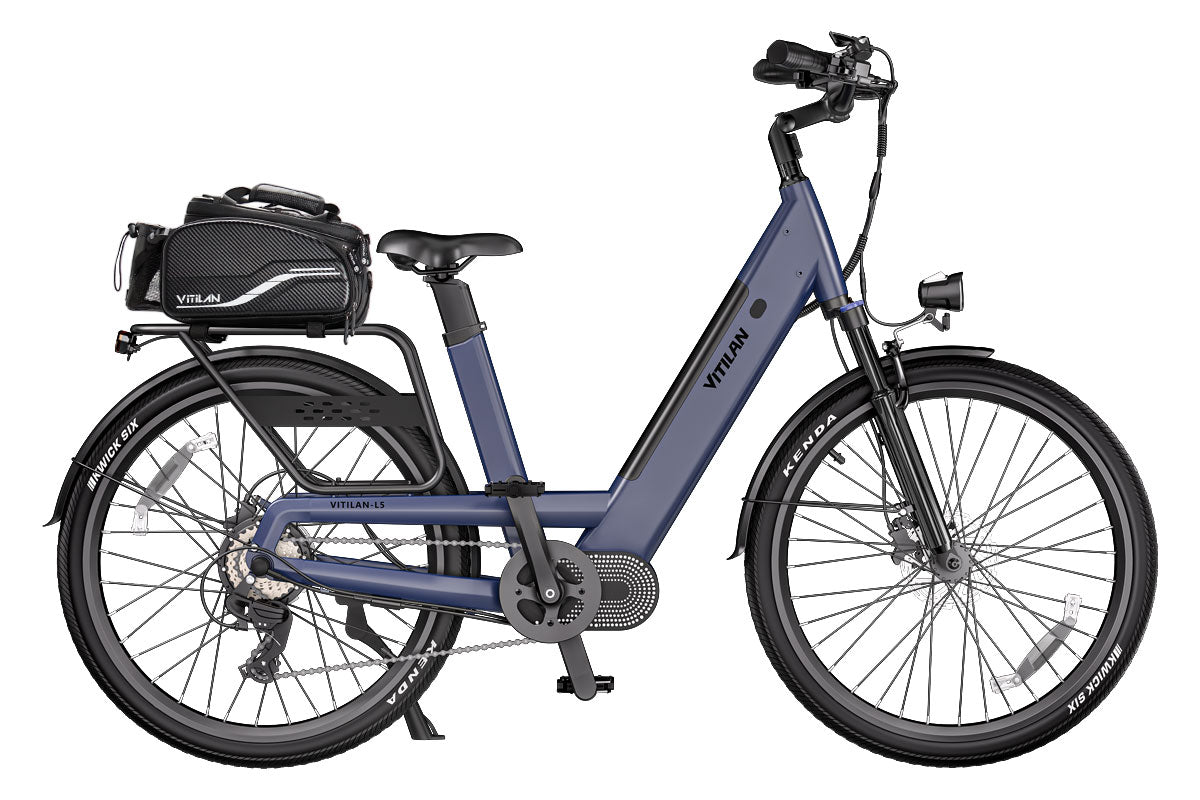

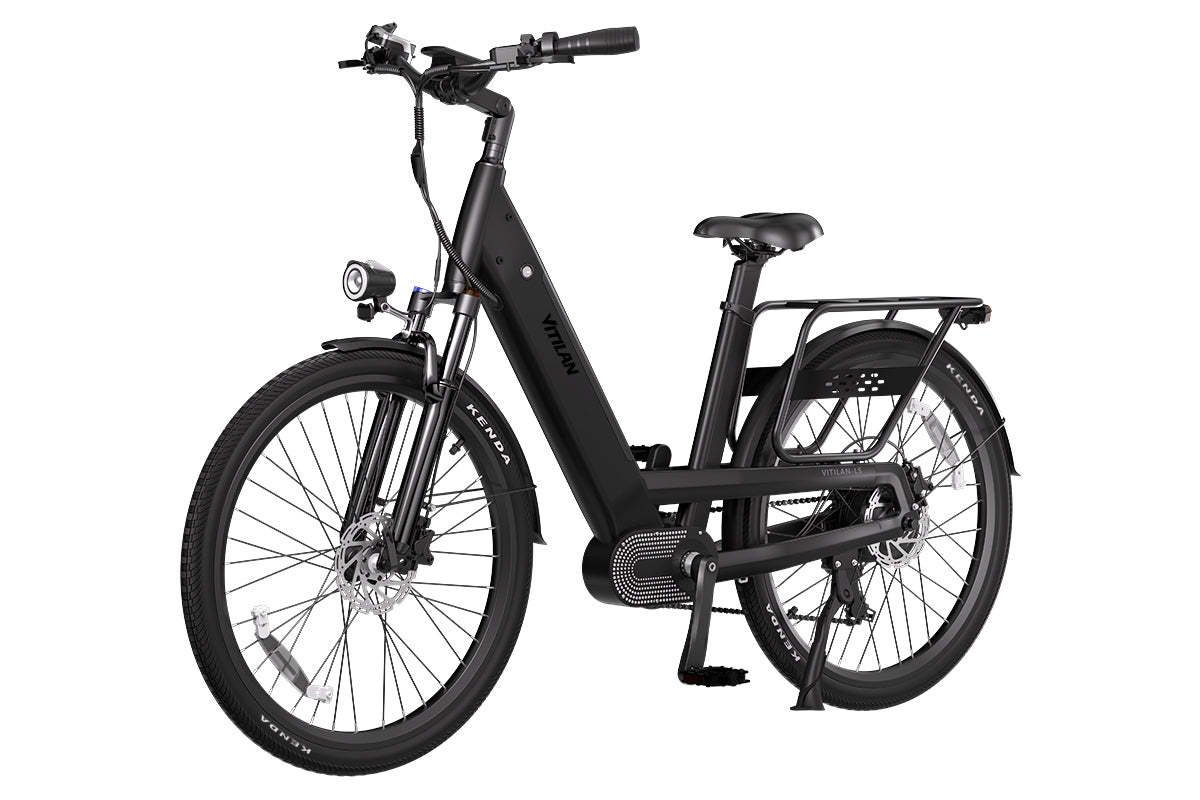

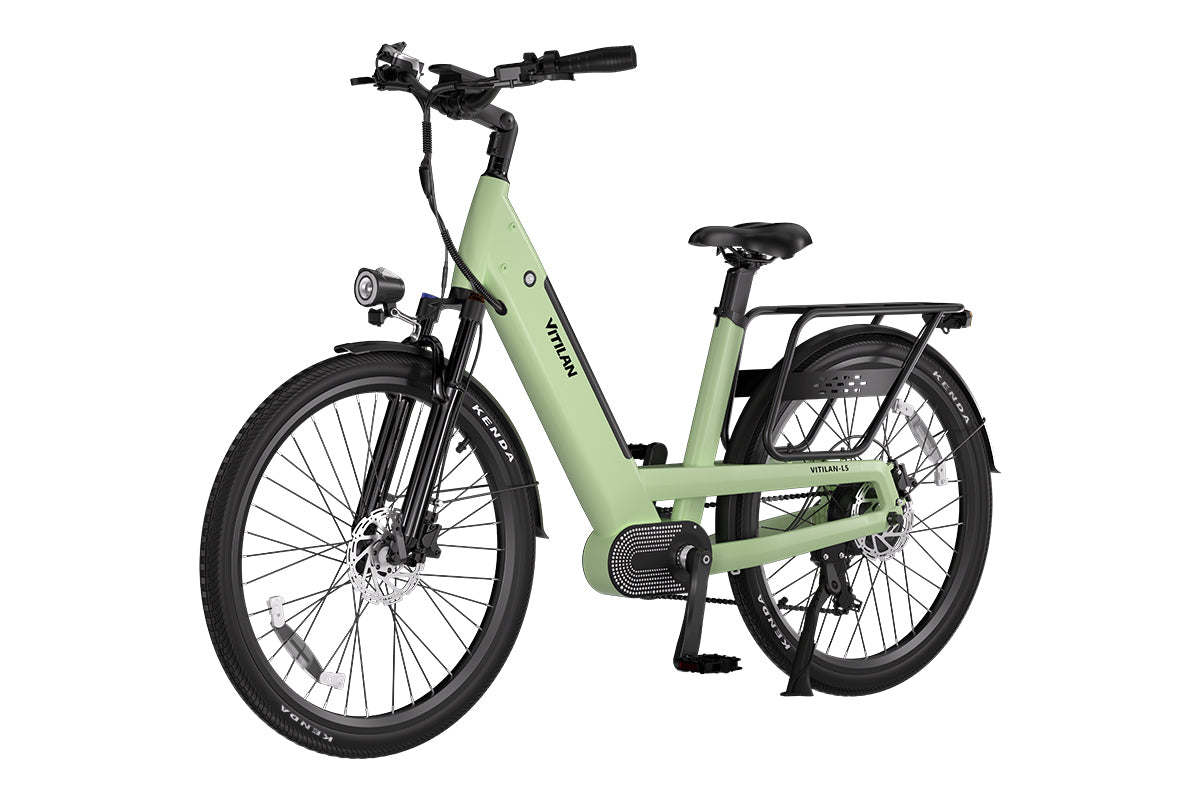

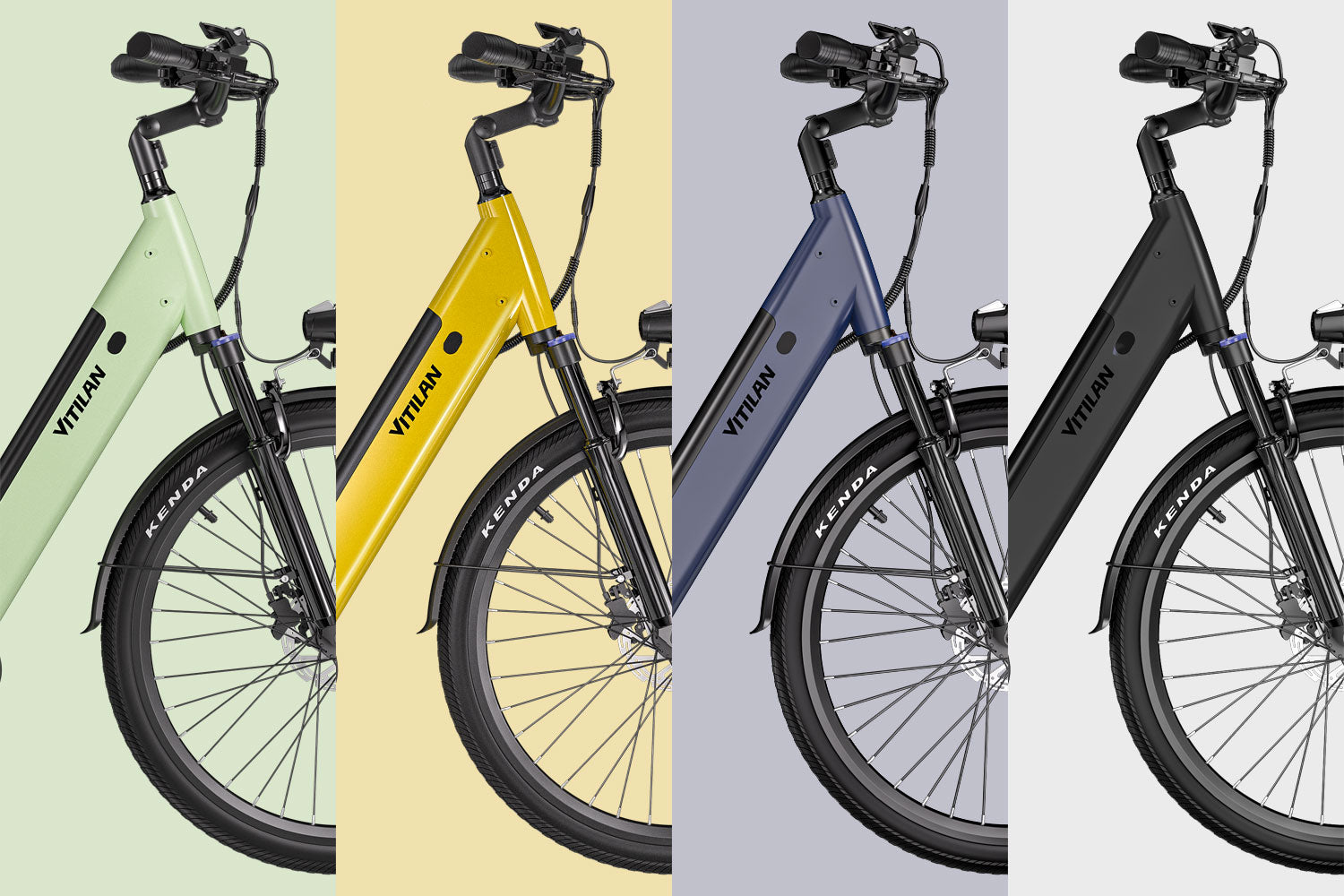

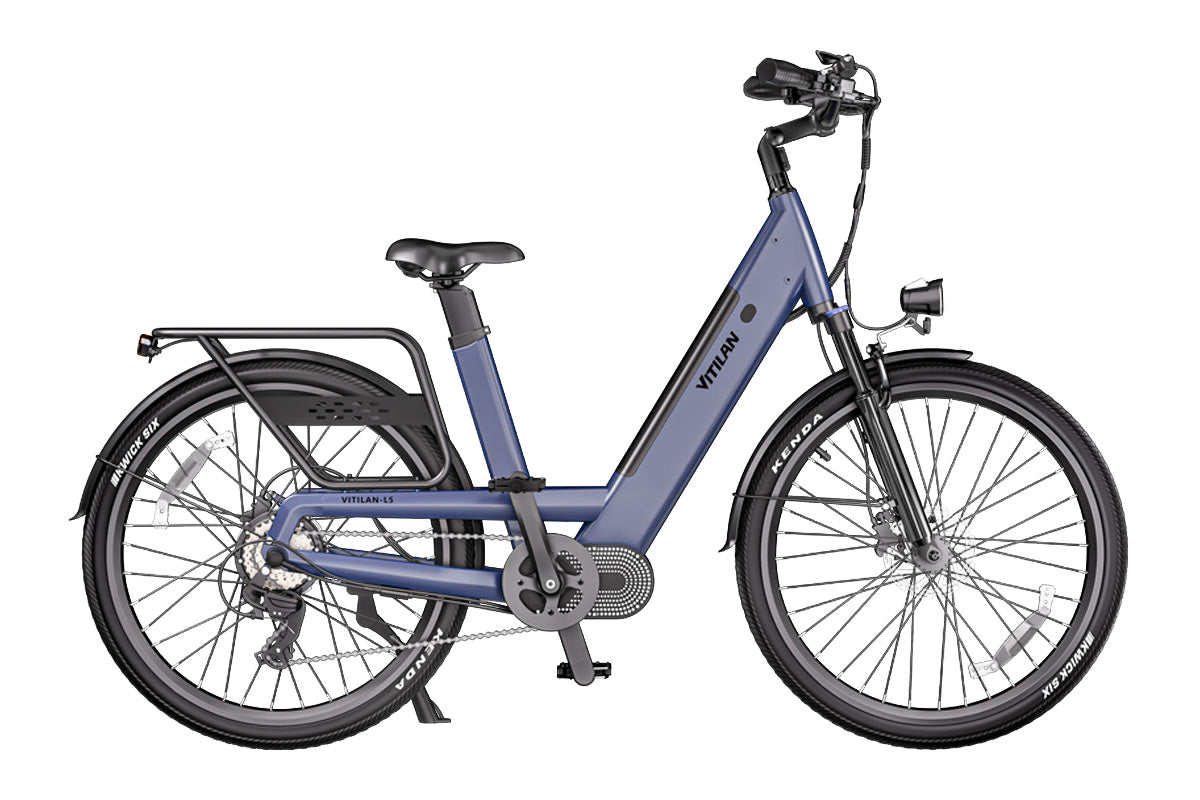

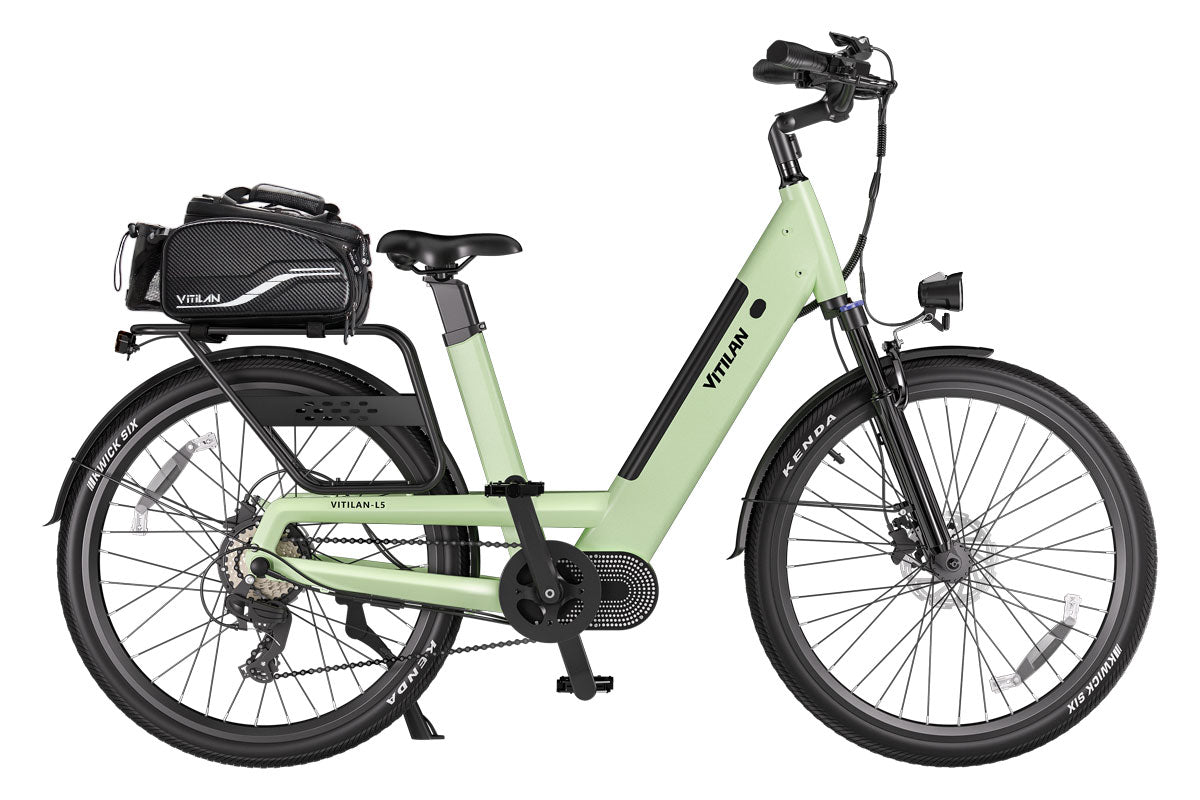

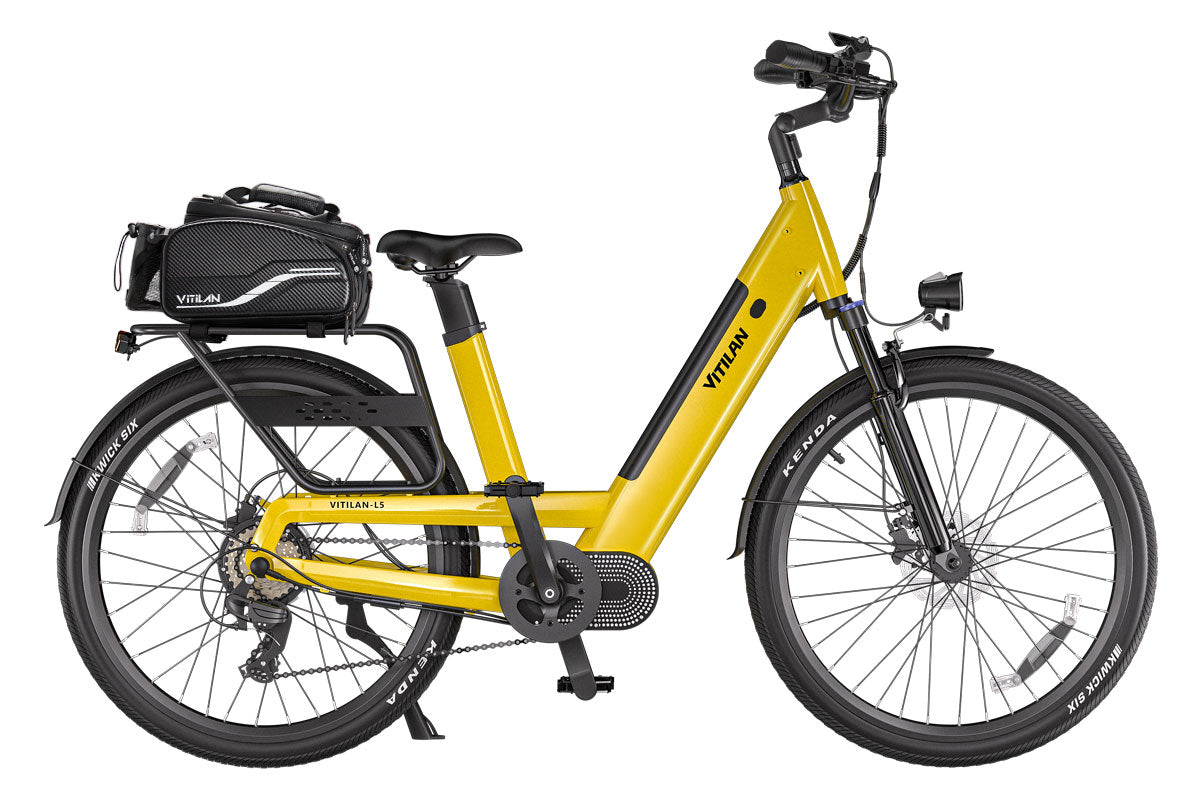

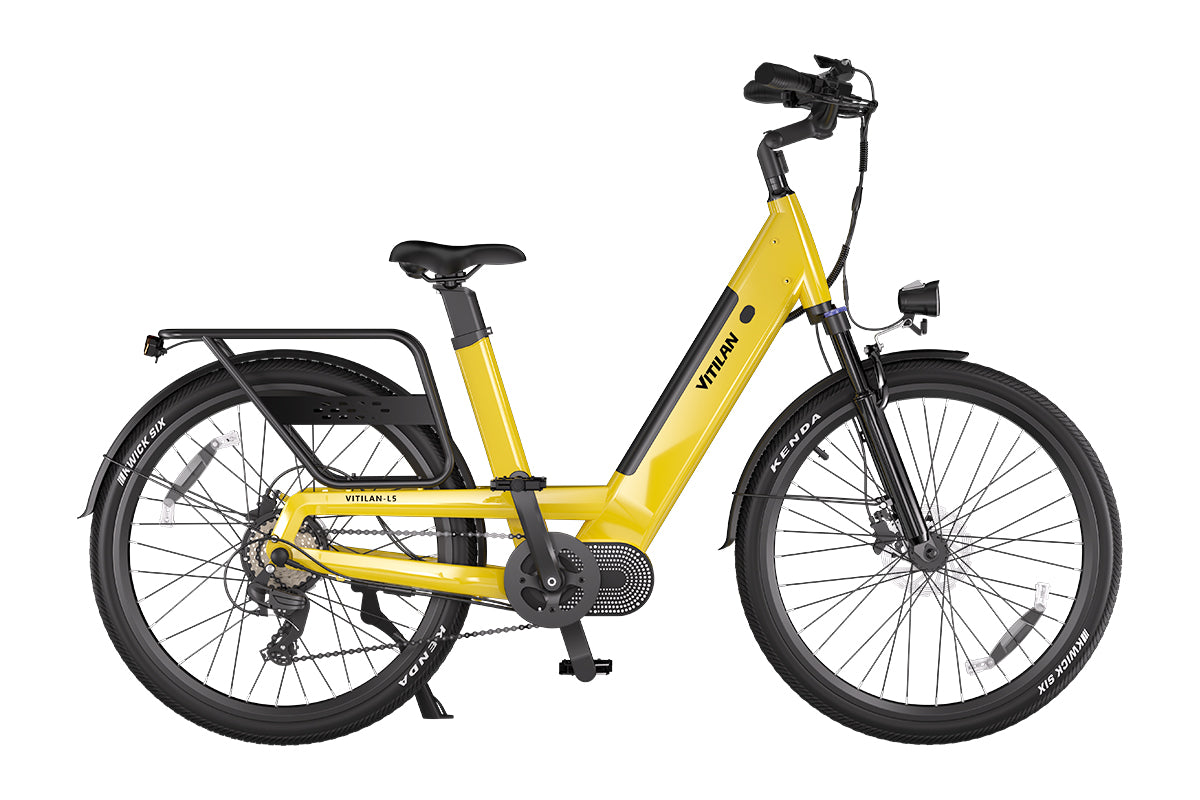

Designed for You in A Variety of Color Styles
Vitilan has customized 4 different colors for you. Pick your mood!
Your companion will explore the city and embody style.
The combination of comfort, reliability, and smart technology means you can spend more time enjoying your journey, wherever you want to go. You are making the right choice for your transportation.
Brushless Hub Motor
Not all motors are created equal. Vitilan L5 has a 500W sustained, 960W peak motor that can output 65Nm of torque. This means you can easily pass up and down the slopes.
500W
Motor Power
65Nm
Torque Provided
25MPH
Speed

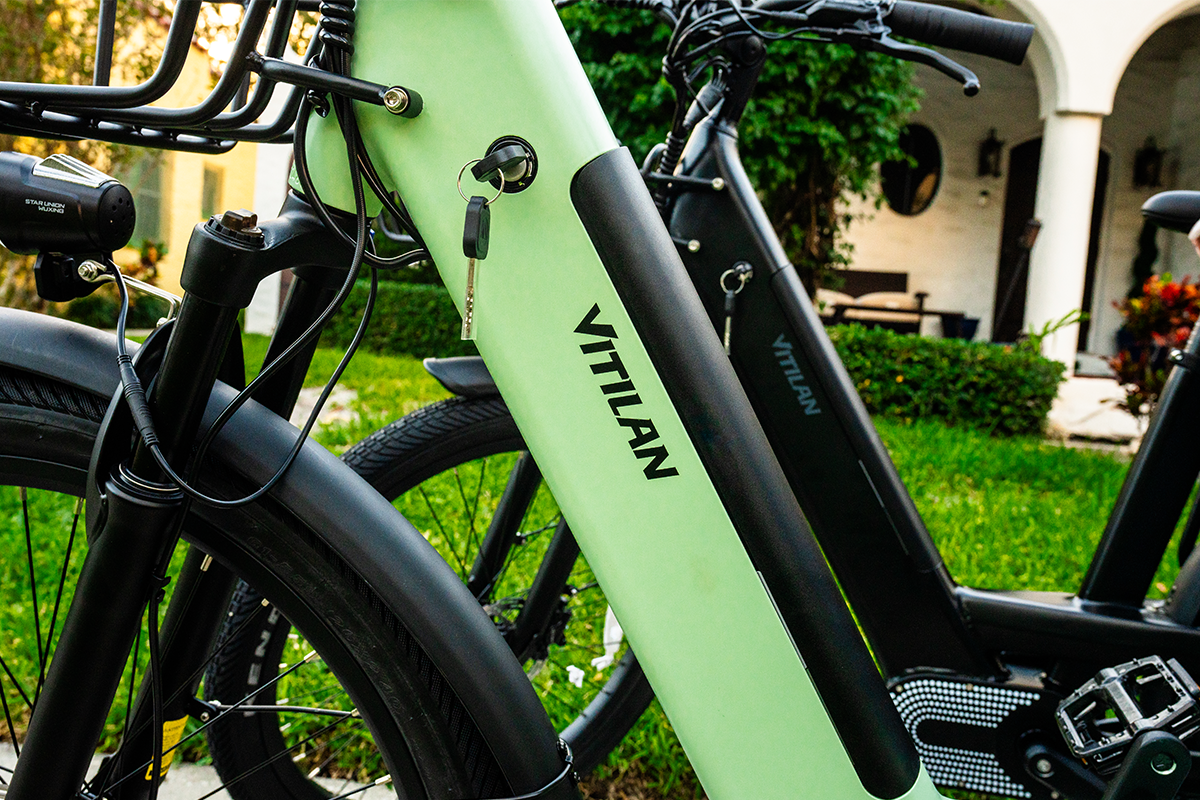

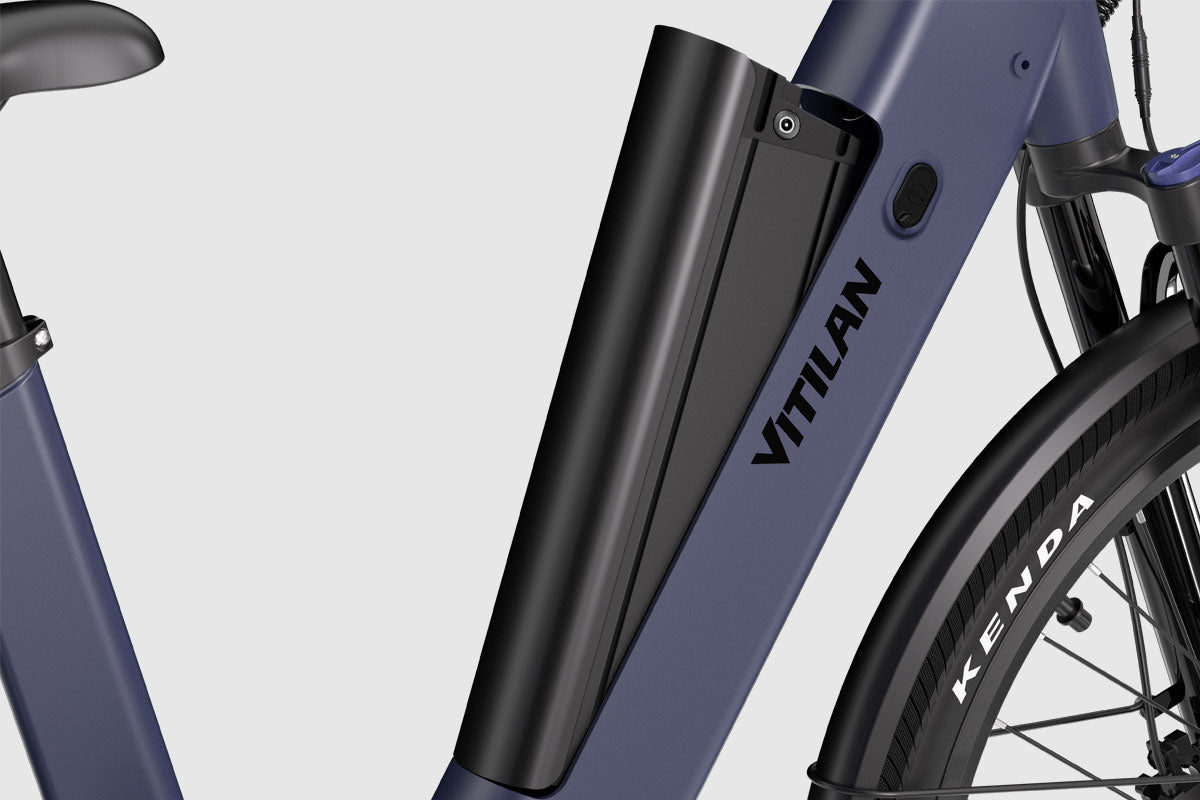

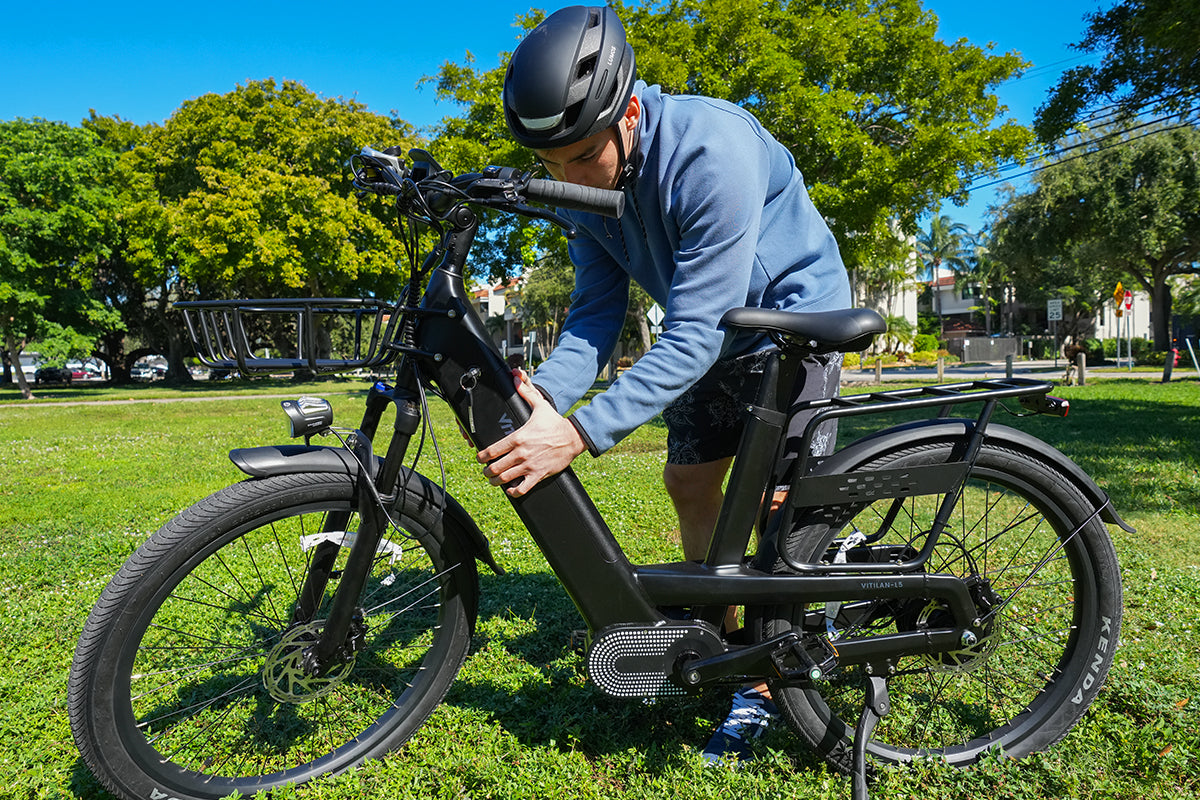

720Wh Removable Battery
Equipped with the 48V 15Ah Samsung battery for more power and a longer range of up to 80 kilometers, the removable battery design offers additional riding options.
48V 15Ah
Lithium-Ion Battery
2.0A Charger
Quick Charge
45-65 Miles
Range
A smooth, peppy ride
Enjoy a smooth ride and precise control. Smart torque sensor translates every movement into smooth motor power.
0 time lag, instantaneous

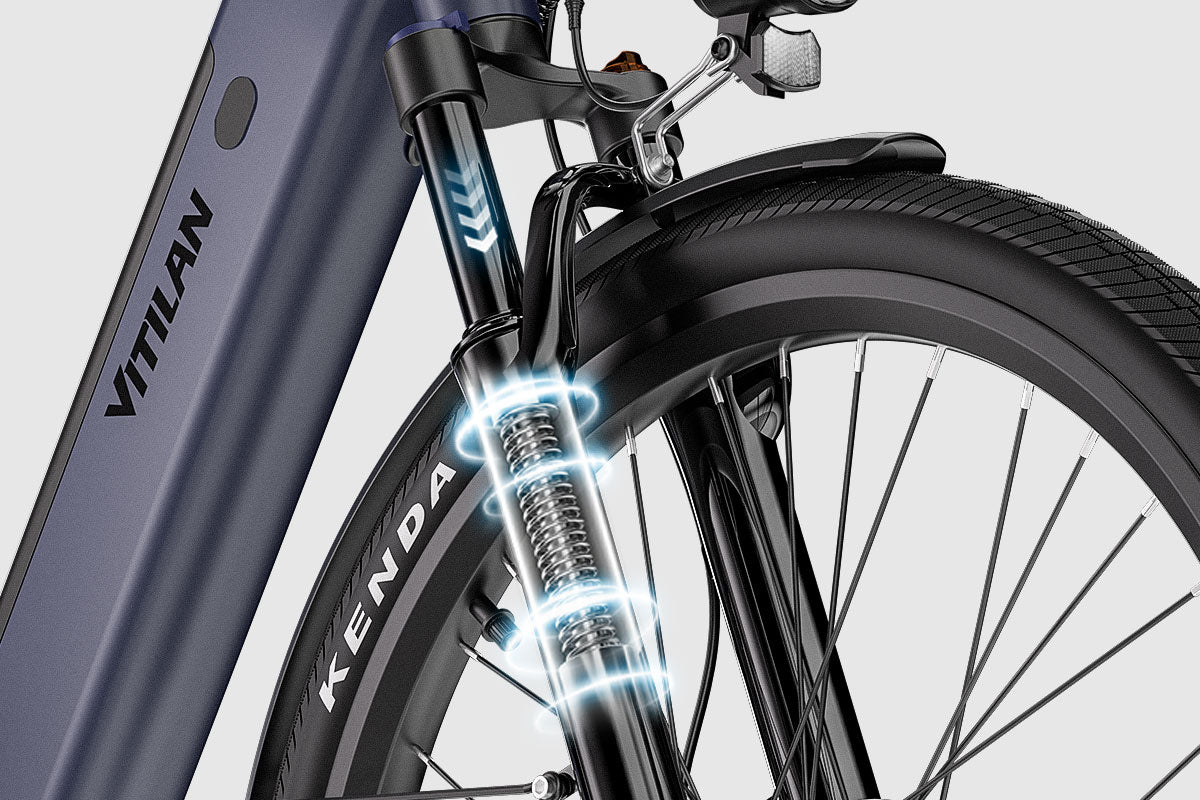

Adjustable Spring Suspension Fork
Adjustable suspension fork can help you absorb the impact of the ground and obstacles, reducing your bumps on the road.

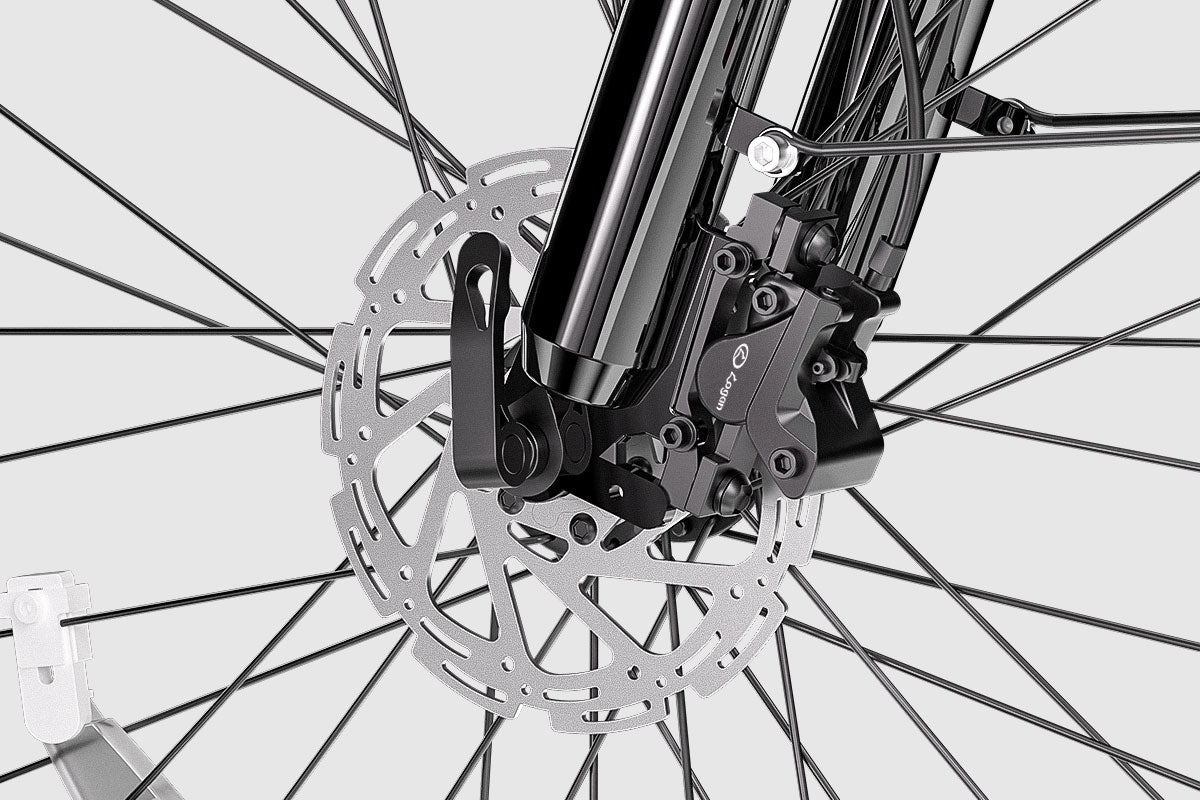

Hydraulic Brake
Sensitive 180mm mechanical disc brakes provide ample braking force even in the harshest conditions efficiently.

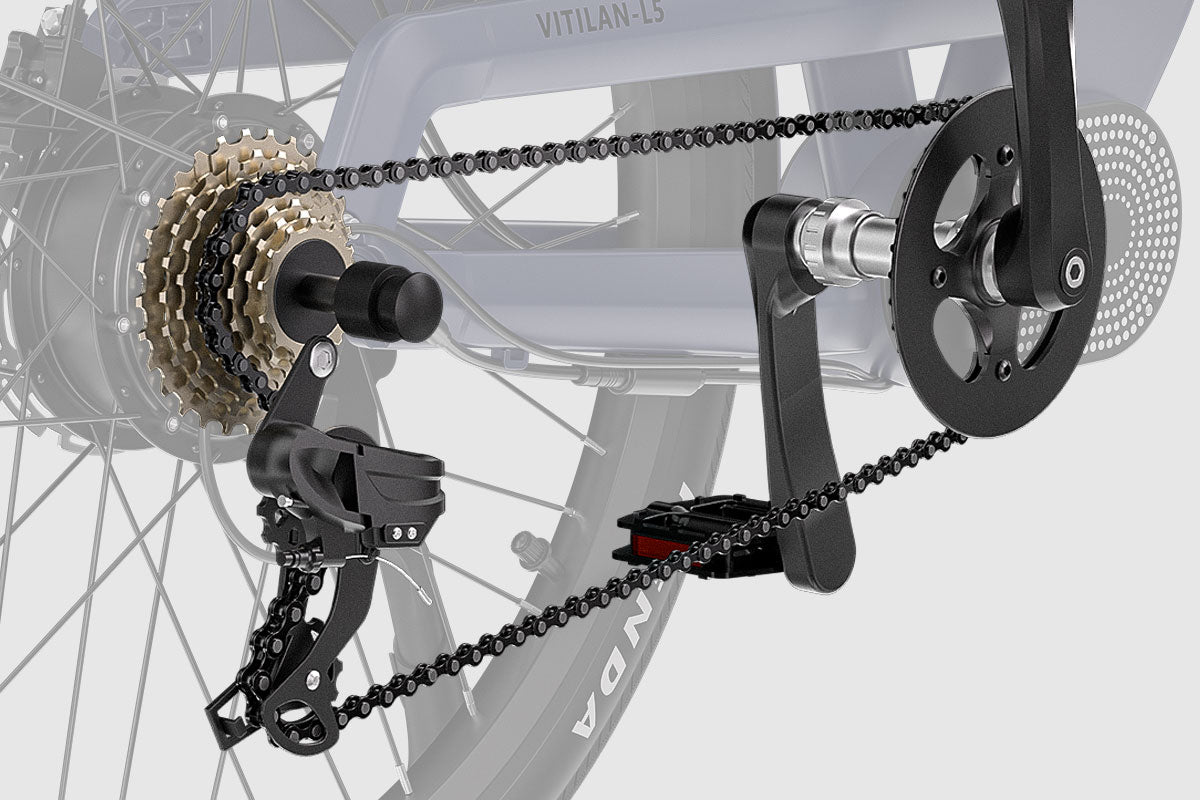

Shimano 7-speed Gear Shift System
Choose different gears according to the road conditions, giving you a more comfortable riding experience.

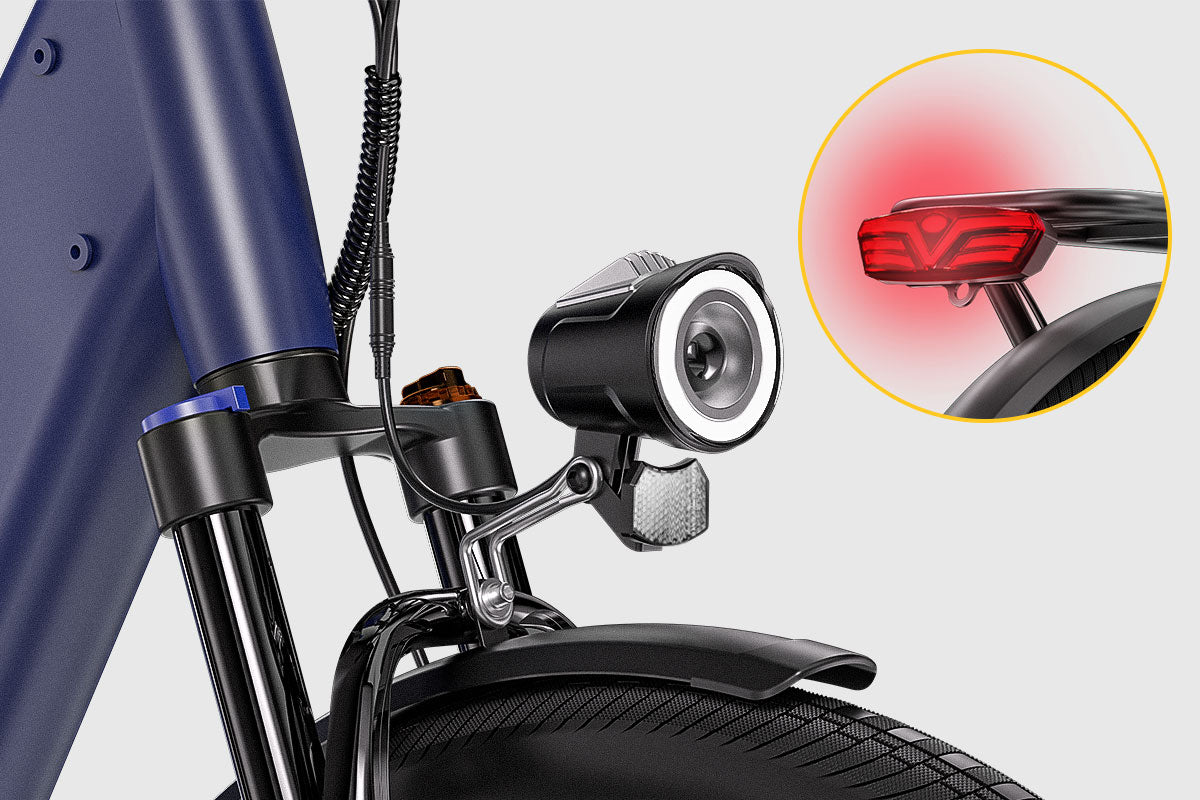

Integrated Headlight and Taillights
Adjustable multi-angle lighting for safe and distraction-free commuting. The rear turn signal also helps warn traffic around you.

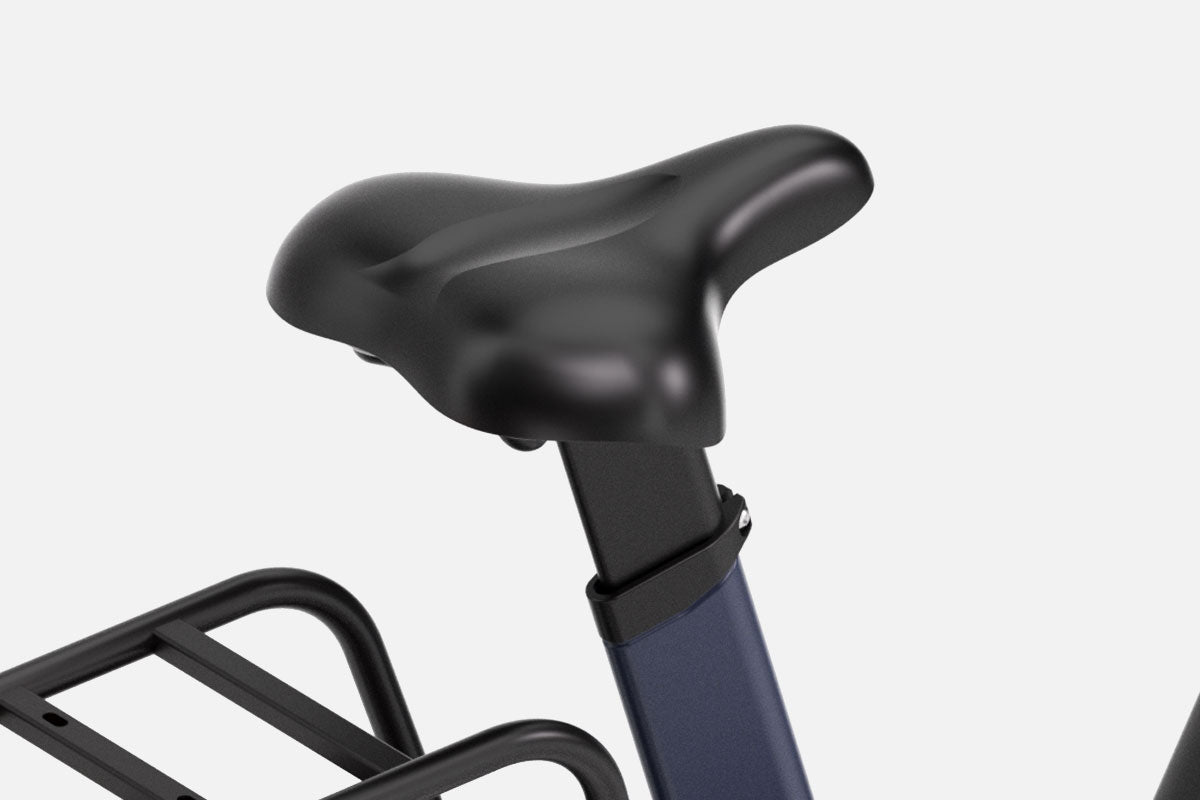

Soft and Comfortable Seat
Experience the ease and flexibility of adjusting the seat height effortlessly for maximum comfort and optimal riding performance.

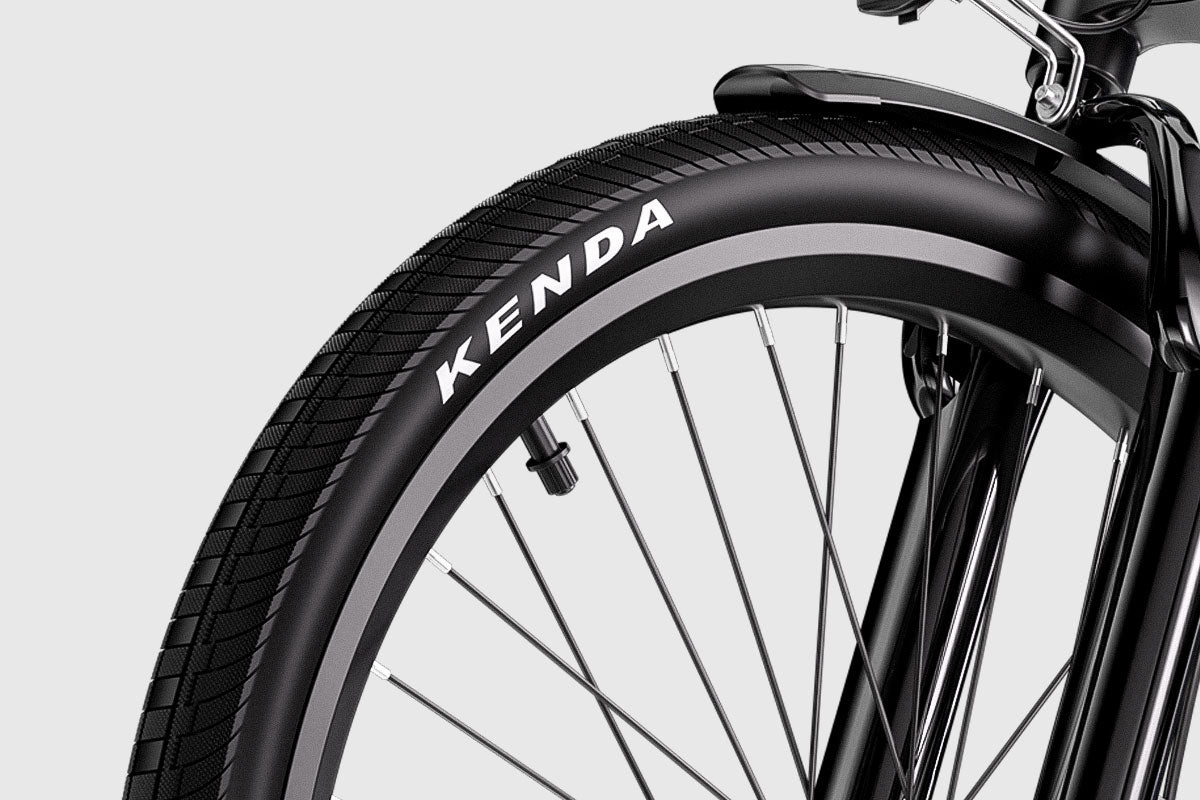

Anti-Puncture Tires
Versatile tires with anti-puncture technology for city, gravel and long-distance driving.
What Makes Vitilan L5
Technical Specifications
- Motor Hub: 48V, 500W (peak 960W) Motor, max torque 65Nm
- Battery: 48V, 15Ah, 720Wh SAM-SUNG Li-ion Battery
- Charger: 54.6V 2.0A, operates on 110V-240V AC, 50-60Hz
- Sensor: Torque sensor

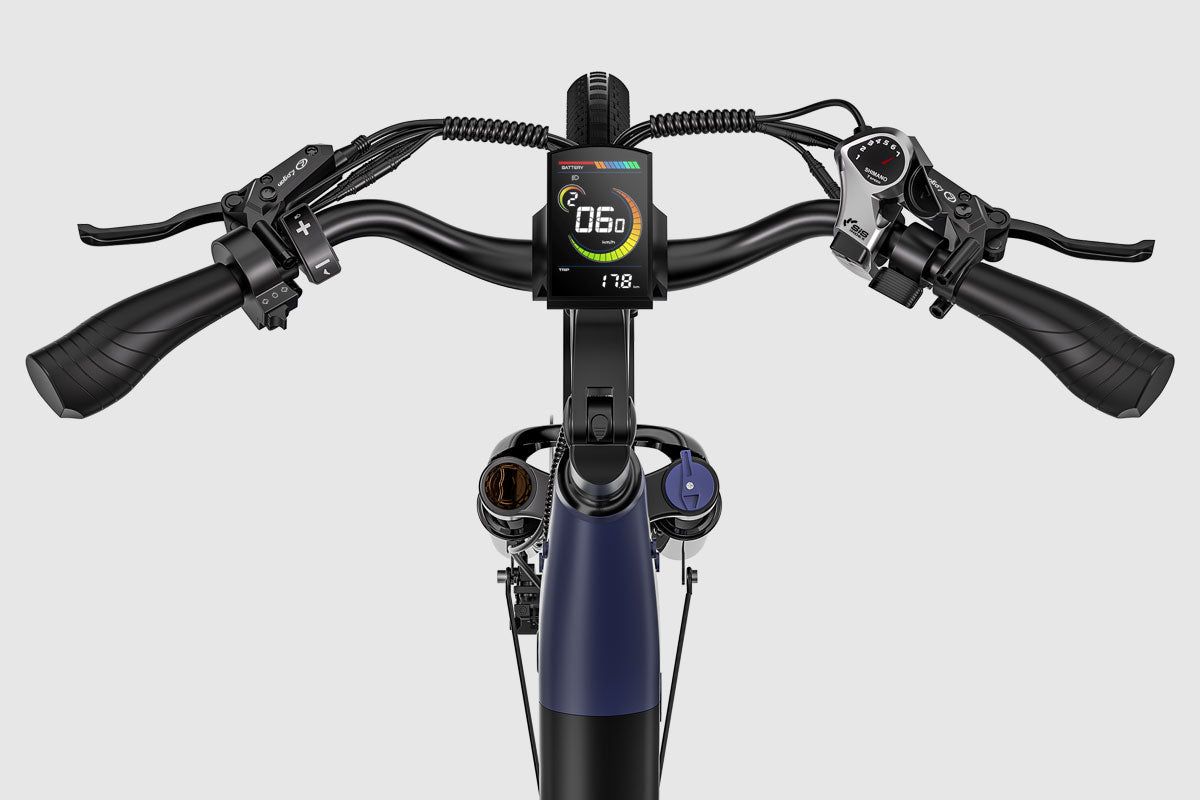

- Display: 48V Multi-function Intelligent Display
- Throttle: Thumb Throttle
- Headlight: High output integrated LED, IPX6
- Rear Light: Signal Turn Light / 48V LED Light
- Pedal Assist Range: 60 Miles
- Throttle Range: 45 Miles
- Controller: 48V / 20A
- Pedals: All aluminum pedal forging
Framesets
- Frame: Aluminum alloy, fully integrated
- Crankset: 38T × 170MM, sand-black aluminum alloy crank
- Cassette: 7 Speeds, 14-28T
- Rear Derailleur: SHIMANO RD-TY300
- Shift Lever: SHIMANO SL-TX50-7R
- Chain: KMC C8
- Brake: 180mm front and rear hydraulic disc brakes
- Fork: Adjustable Spring Suspension Fork
- IP Level: IPX6
- Tire: Kenda 26×2.4”, puncture-resistant liner
- Max Load: 330 lbs
- Max Speed: 25MPH
- Bike Weight: 69.4 lbs

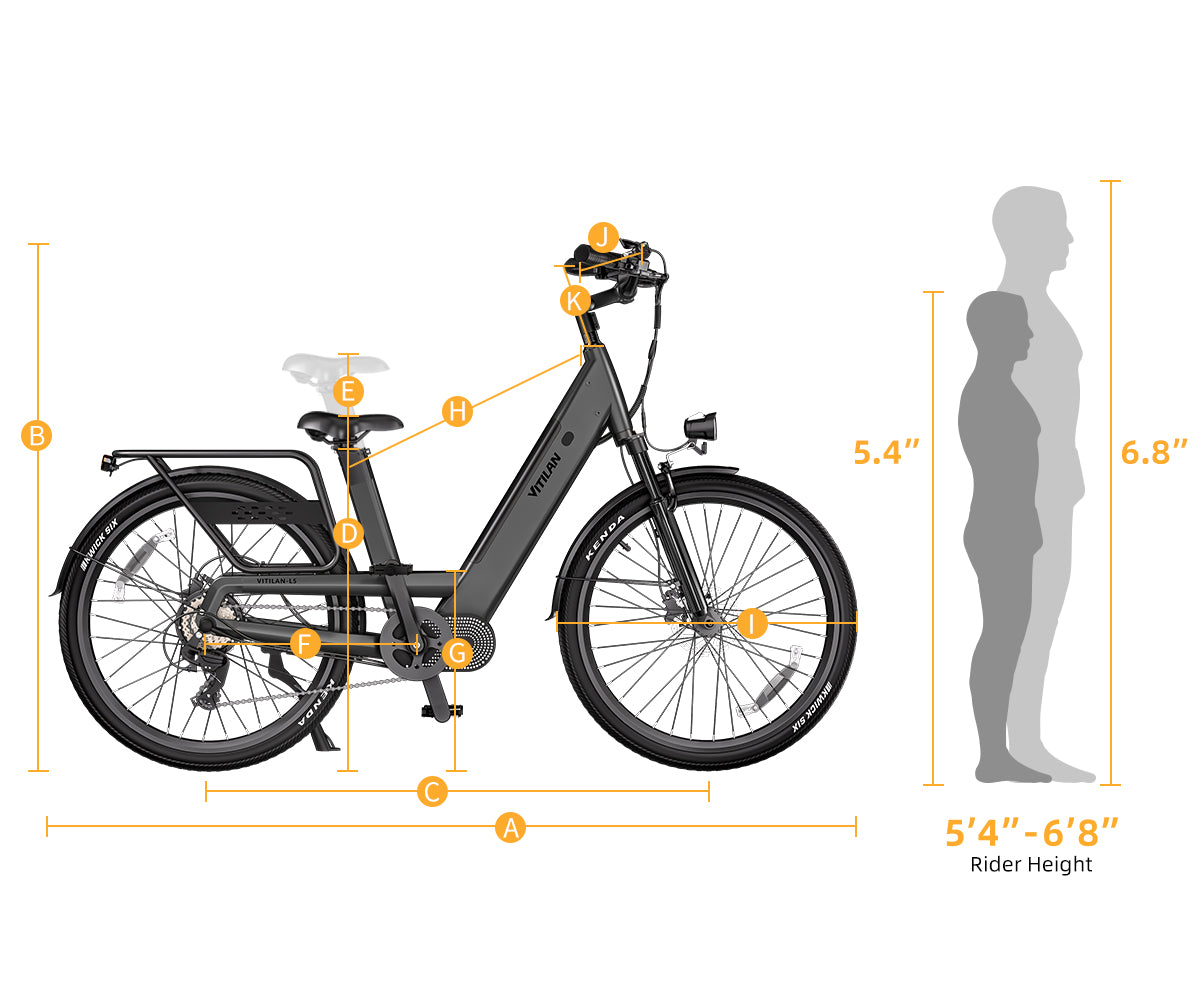

- A: Total length 72.44"
- B: Handlebar height 45.67"
- C: Wheelbase 47.28"
- D: Minimum seat height 32.28"
- E: Maximum seat height 37.4"
- F: Chain stay length 29.69"
- G: Stand height 17.72"
- H: Top tube length 21.65"
- I: Wheel diameter 26"
- J: Handlebar length 25.98"
- K: Head tube length 5.9"
What should I do if I have an after-sales problem?
If you encounter any after-sales problems in the process of using our products, we will do our best to ensure that you get timely and effective solutions. You can send an email to our after-sales service mailbox eu.support@vitilanebike.com, please describe the problem in detail and include your order number and contact information. Our after-sales team will process your email as soon as possible and reply within one working day.
